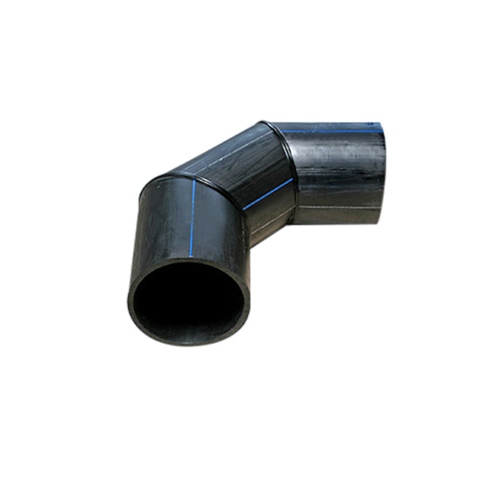

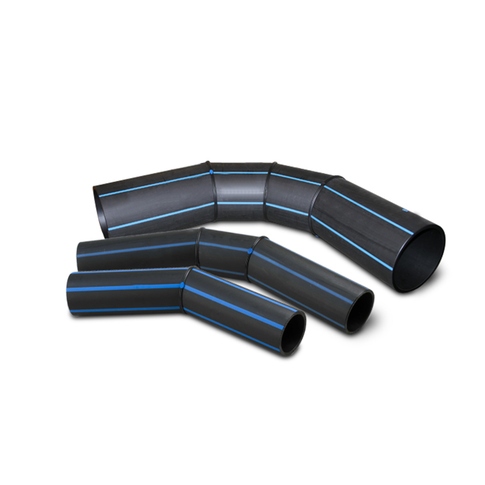

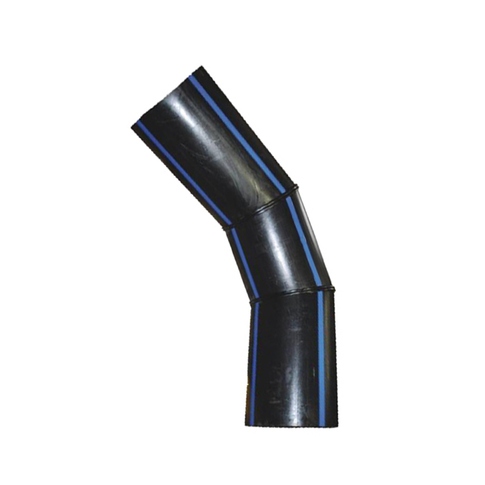

HDPE Segment Bend 45 Degree

HDPE Fabricated Fittings Application HDPE Fabricated Fittings Specifications Advantages of Fabricated Fittings

HDPE Fabricated Fittings Application

Application

While most of the project can be done with straight HDPE pipe and standard fittings, it is also important to have quality made custom-fabricated items, manufactured to standard, and delivered to site within the time-frame required.

Puhui HDPE fabricated pipe and fitting are means to solve installation situations where common fitting fail, meet more complex and cost efficient pipeline designs.

HDPE Fabricated Fittings Specifications

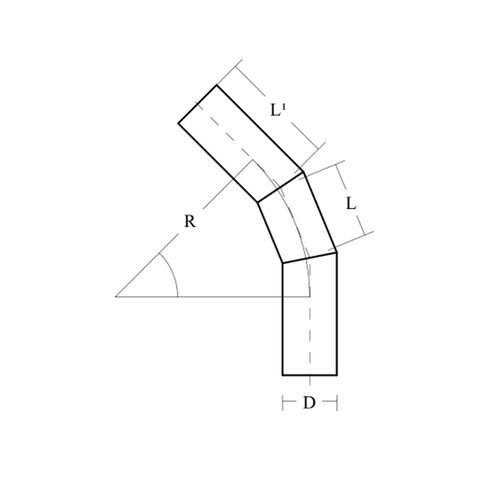

OD D (mm)	L (mm)	L¹ (mm)	R (mm)
75	155	238	395
90	155	238	395
110	155	238	395
125	155	238	395
140	155	238	395
160	155	238	395
180	155	238	395
200	250	405	637
225	250	405	637
250	250	405	637
280	250	405	637
315	250	405	637
355	380	590	968
400	380	590	968
150	380	590	968
500	380	590	968
560	470	900	1200
630	590	900	1500

Advantages of Fabricated Fittings

Quality of the work is easier to manage & maintain in a controlled environment. High accuracies on specified tolerances will avoid rework at site.

Weather independent fabrication will minimize production delays.

Manufacturing in dedicated production facility, will result in lower manufacturing costs compared with on-site fabrication.

A controlled production environment allows for better control of welding parameters and results in lower risk of costly rework at the project site.

Lesser dependency on field power, avoiding unnecessary time delays and power generation costs.

Fabricating fittings off site means reduced contamination of fabrications intended for use in food processing or other industries that utilize clean environments for product production.
