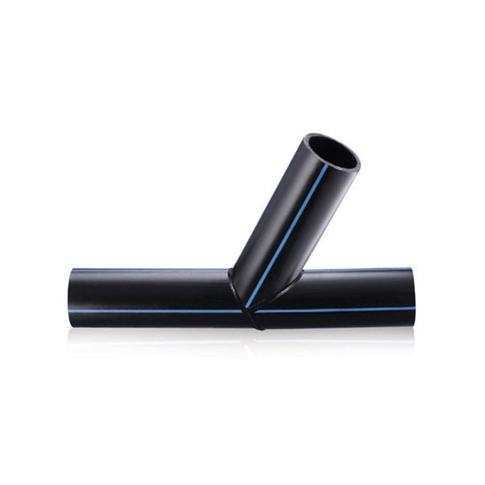

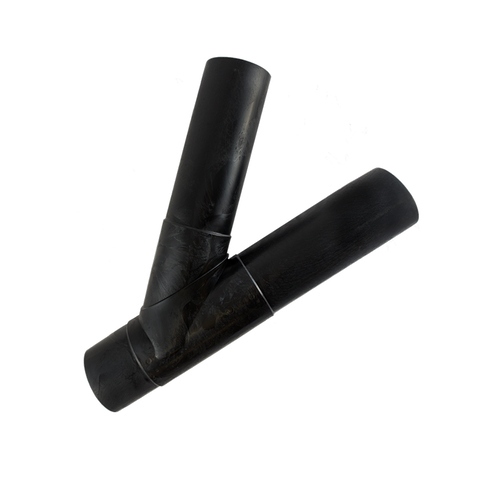

HDPE Lateral plain ended - Puhui Industry

HDPE Fabricated Fittings Application HDPE Fabricated Fittings Specifications Advantages of Fabricated Fittings

HDPE Fabricated Fittings Application

Application

While most of the project can be done with straight HDPE pipe and standard fittings, it is also important to have quality made custom-fabricated items, manufactured to standard, and delivered to site within the time-frame required.

Puhui HDPE fabricated pipe and fitting are means to solve installation situations where common fitting fail, meet more complex and cost efficient pipeline designs.

HDPE Fabricated Fittings Specifications

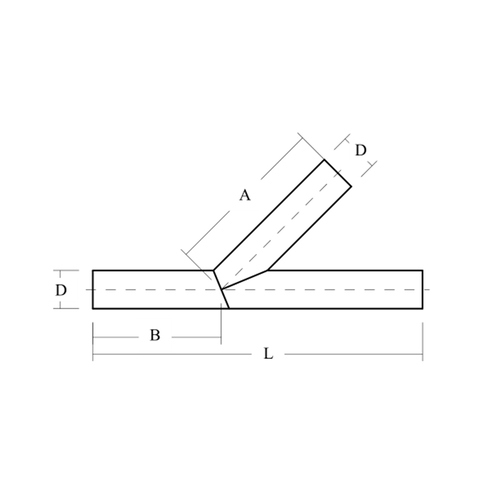

OD D (mm)	A (mm)	B (mm)	L (mm)
50	200	150	400
63	200	150	400
75	475	370	950
90	475	370	950
110	475	370	950
125	475	370	950
140	475	370	950
160	475	370	950
180	875	530	1350
200	875	530	1350
225	875	530	1350
250	875	530	1350
280	900	700	1800
315	900	700	1800
355	900	700	1800
400	900	700	1800
450	1100	870	2200
500	1100	870	2200
560	1200	950	2400
630	1200	950	2400

Advantages of Fabricated Fittings

Quality of the work is easier to manage & maintain in a controlled environment. High accuracies on specified tolerances will avoid rework at site.

Weather independent fabrication will minimize production delays.

Manufacturing in dedicated production facility, will result in lower manufacturing costs compared with on-site fabrication.

A controlled production environment allows for better control of welding parameters and results in lower risk of costly rework at the project site.

Lesser dependency on field power, avoiding unnecessary time delays and power generation costs.

Fabricating fittings off site means reduced contamination of fabrications intended for use in food processing or other industries that utilize clean environments for product production.
