Puhui Supply The Best Quality and Low Price HDPE pipes
To All Customers Worldwide.
To All Customers Worldwide.
The 24-hour contact information is as follows.
“Leading Quality HDPE Pipe Manufacturer & Supplier & Factory”
| Our HDPE Pipes and Fittings includes | |||
| Product Name | Pressure Rate | Size | Free Sample |

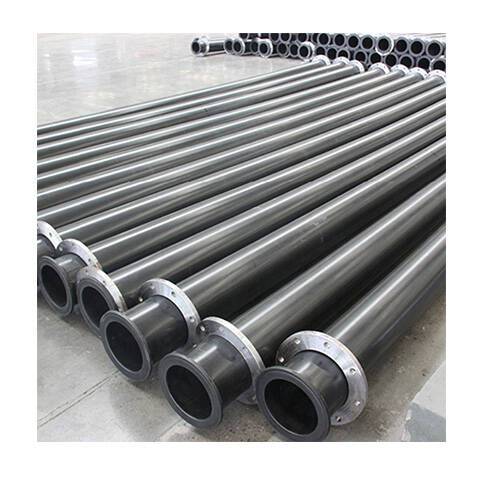

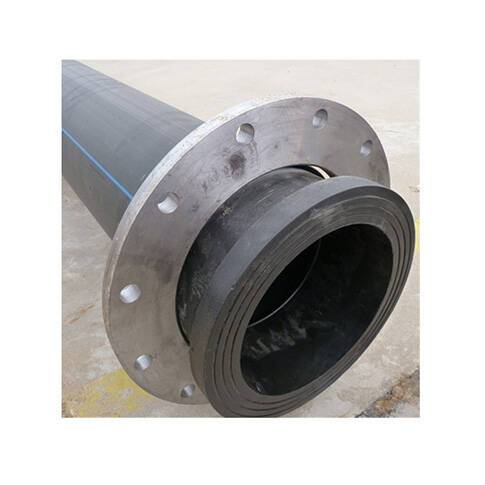

| HDPE Pipe [Click To] | [SDR26 – SDR6] [PN6 – PN32] | 12mm -1800mm | √ |
| HDPE Butt Fusion Fittings [Click To] | [SDR26 – SDR6] [PN6 – PN32] | 63mm – 1600mm | √ |
| HDPE Electrofusion Fittings [Click To] | [SDR26 – SDR6] [PN6 – PN32] | 63mm – 400mm | √ |
| HDPE Fabricated Fittings [Click To] | [SDR26 – SDR6] [PN6 – PN32] | 20mm – 1600mm | √ |
| PP Compressure Fittings [Click To] | PN10-SDR17, PN16-SDR11 | 20mm – 400mm | √ |
| HDPE Welding Machine [Click To] | – | 63mm-1000mm | – |
| DN | SDR41 4BAR |
SDR26 6BAR |
SDR21 8BAR |
SDR17 10BAR |
SDR13.6 12.5BAR |
SDR11 16BAR |
SDR9 20BAR |
SDR7.4 25BAR |
|
| (MM) | (INCH) | W.T. (MM) | W.T. (MM) | W.T. (MM) | W.T. (MM) | W.T. (MM) | W.T. (MM) | W.T. (MM) | W.T. (MM) |
| 110 | 4 | 2.7 | 4.2 | 5.3 | 6.6 | 8.1 | 10 | 12.3 | 15.1 |
| 125 | 5.5 | 3.1 | 4.8 | 6 | 7.4 | 9.2 | 11.4 | 14 | 17.1 |
| 140 | 6 | 3.5 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | 15.7 | 19.2 |
| 160 | 6 | 4 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 | 17.9 | 21.9 |
| 180 | 6 | 4.4 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 | 20.1 | 24.6 |
| 200 | 8 | 4.9 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | 22.4 | 27.4 |
| 225 | 8 | 5.5 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 | 25.2 | 30.8 |
| 250 | 10 | 6.2 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 | 27.9 | 34.2 |
| 280 | 10 | 6.9 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 | 31.3 | 38.3 |
| 315 | 12 | 7.7 | 12.1 | 15 | 18.7 | 23.2 | 28.6 | 35.2 | 43.1 |
| 355 | 14 | 8.7 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 | 39.7 | 48.5 |
| 400 | 16 | 9.8 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 | 44.7 | 54.7 |
| 450 | 18 | 11 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 | 50.3 | 61.5 |
| 500 | 20 | 12.3 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 | 55.8 | |
| 560 | 22 | 13.7 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 | 62.5 | |
| 630 | 24 | 15.4 | 24.1 | 30 | 37.4 | 46.3 | 57.2 | 70.3 | |
| 710 | 28 | 17.4 | 27.2 | 33.9 | 42.1 | 52.2 | 64.5 | 79.3 | |
| 800 | 32 | 19.6 | 30.6 | 38.1 | 47.4 | 58.8 | 72.6 | 89.3 | |
| 900 | 36 | 22.0 | 34.4 | 42.9 | 53.3 | 66.2 | 81.7 | ||
| 1000 | 40 | 24.5 | 38.2 | 47.7 | 59.3 | 72.5 | 90.9 | ||
