HDPE Butt Fusion Stub End - Puhui Industry

Description

We Offer a Full Line of HDPE Butt Fusion Fittings

1. HDPE Butt Fusion 45 Degree and 90 Degree Elbows.
2. Tees, Reducers, Flange Adapters and Ductile Iron Backup Rings.
3. Threaded Stainless Steel to HDPE Transistion Fittings.
4. Large fabricated hdpe fittings can be special ordered.

Not all of our Hdpe Butt Fusion Fittings are listed on our website.
If you are in need of something specific please contact us at [email protected] for more information.

The HDPE Butt Fusion Fittings developed and produced by Puhui has excellent properties of strength and wear resistance. HDPE Butt Fusion Fittings are widely used in PE pipe connection

热熔管件集合图

Our HDPE Pipes and Fittings includes
Product Name	Pressure Rate	Size	Free Sample
HDPE Pipe [Click To]	[SDR26 – SDR6] [PN6 – PN32]	12mm -1800mm	√
HDPE Butt Fusion Fittings [Click To]	[SDR26 – SDR6] [PN6 – PN32]	63mm – 1600mm	√
HDPE Electrofusion Fittings [Click To]	[SDR26 – SDR6] [PN6 – PN32]	63mm – 400mm	√
HDPE Fabricated Fittings [Click To]	[SDR26 – SDR6] [PN6 – PN32]	20mm – 1600mm	√
PP Compressure Fittings [Click To]	PN10-SDR17, PN16-SDR11	20mm – 400mm	√
HDPE Welding Machine [Click To]	–	63mm-1000mm	–

Specifications

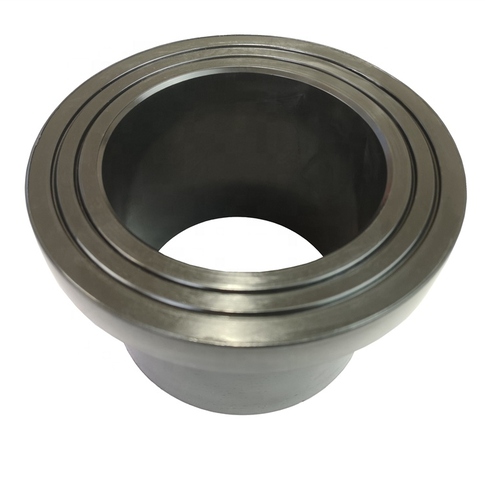

Product Name	HDPE Butt Fusion Stub End
Size	DN63-800mm (Other size can be customized)
Pressure Rate	SDR9, SDR11, SDR13.6, SDR17
Material	High Quality PE100,PE4710
Color	Available in black, colors can be customized
Standard	ISO4427, EN12201, AS/NZS4130, ASTM3035
Sample	Sample Available

Advantages

Non-toxic, hygienic

PE pipe fittings are non-toxic and odorless. After strict health monitoring, they are green building materials and never produce scale, which can effectively improve water quality.

Corrosion resistance

PE is an inert material that is resistant to various chemical media.

High toughness

The elongation at break of HDPE pipes is generally above 500%. For the uneven settlement of the foundation engineering construction, its adaptability is very strong and the seismic performance is good.

Long service life

The buried PE pipe fittings are used normally for more than 70 years.

Excellent resistance to rapid crack propagation (RCP).

Excellent flexibility and scratch resistance.

Good wear resistance, low wall friction coefficient, small flow resistance, strong conveying capacity.

Very convenient construction and installation.

Low system cost and reduced maintenance costs can greatly reduce project costs.

PE accessories can be reused, fully in line with the advocacy of efficient environmental protection.

PE pipe fittings are connected by electrofusion, and the interface strength is higher than the pipe itself.
