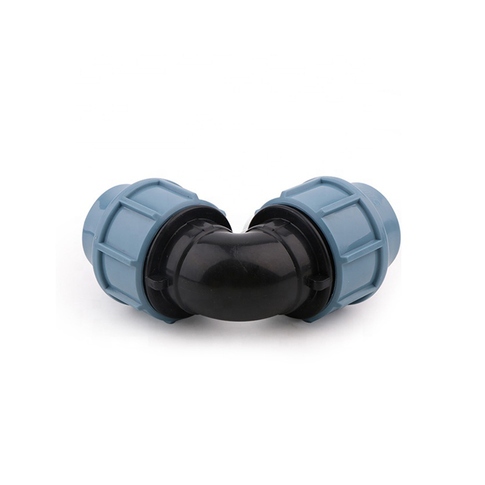

PP Compression Elbow 90 Degree

PP Compression Elbow 90 Degree

  1. Size: 20mm-110mm
  2. Pressure: SDR17/SDR11
  3. Raw Materials: PP
  4. Standard: ISO 4427/ EN12201/ ISO 15494/ PAS1075
  5. Certificate: CE
  6. Color: Blue, Green, Black
PP Compression Fittings Application

Application

For a flexible connection of PE pipes.

Applications range from water supply, irrigation, heating, solar technology, rainwater utilisation systems to gas, liquid gas and heating oil installations.

Operating pressure 10 bar or 16 bar.

PP Compression fittings Specifications
Production Name PP Compression Elbow 90 Degree
Sizes DN20-110mm
Pressure Rate PN10, PN16
Material PP
Color Blue/Green/ Black
Standard EN 712 / 713 / 715; ISO 3501 / 3503 / 3458 /3459
Sample Sample Available
Advantages of PP compression fittings

These fittings allow for a quick, simple insertion of the tube, considerably reducing installation time: simply loosen the nut (without removing it), and insert the pipe.
