Home > Products > Hydraulic Butt Welding Fusion Machine

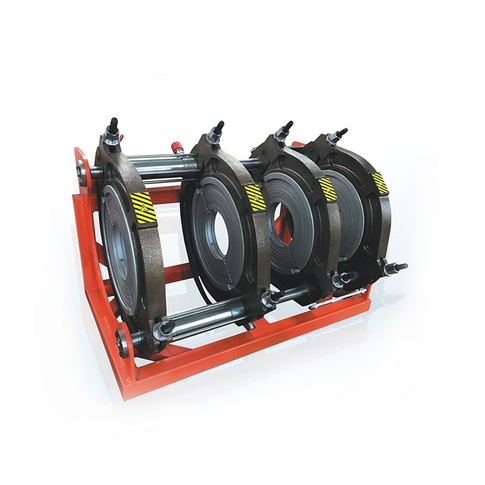

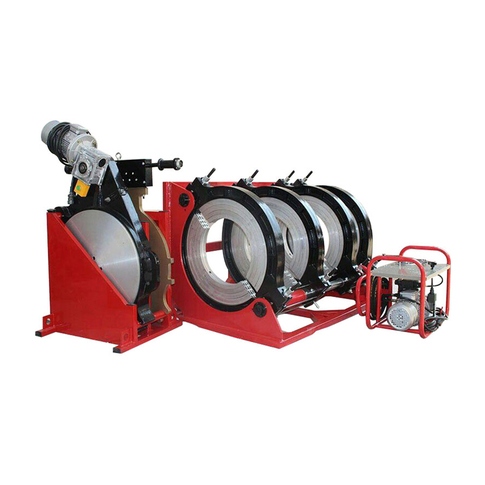

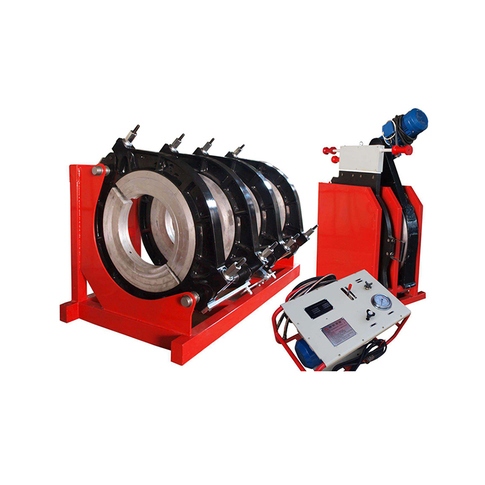

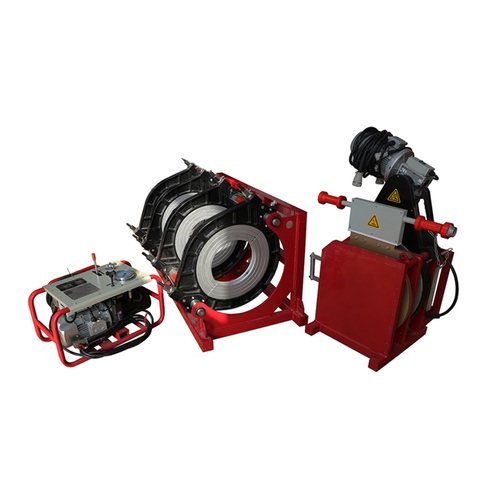

Hydraulic Butt Welding Fusion Machine

Hydraulic Butt Welding Fusion Machine

Welding Range:63mm-1000mm

HDPE Welding Machine Application

Application

1. Material preparation: Pipes and pipe fittings should be matched with equal diameter, reducing elbow and tee fittings according to the construction requirements. Hot-melt welding should use pipe fittings of the same grade and material. Welding between pipe fittings of different grades and materials with similar performance should be tested first.



2. Clamp the pipe: Use a clean cloth to remove the dirt on the ends of the two pipes. Place the pipe in the rack slips, replace the basic fixture according to the pipe fittings to be welded, and select the appropriate slips so that the lengths of the two ends of the butt joint are approximately equal and should be as short as possible while meeting the requirements of milling and heating . The part of the pipe outside the frame is held up with a support frame, so that the axis of the pipe is at the same height as the center line of the frame, and then fastened with slips.



3. Cutting: Insert the milling cutter, then slowly close the welding ends of the two pipes, and apply appropriate pressure until continuous chips appear on both ends. Remove the pressure, wait a moment, and then exit the movable frame. The chip thickness should be 0.5~1.0mm to ensure that the impurities and oxide layers on the end faces of the welded pipe sections are cut, and the two butt joint end faces are smooth and clean.



4. Alignment: The wrong side of the two pairs of welded pipe sections should be as small as possible. If the wrong side is large, it will cause stress concentration, and the wrong side should not exceed 10% of the wall thickness.



5. Heating: After the temperature of the heating plate reaches the set value, put it into the rack and apply pressure until the minimum curling edge on both sides reaches the specified width and the pressure is reduced to the specified value to absorb heat. Ensure that there is enough molten material to prepare for the mutual diffusion of molecules during melting and docking.



6. Switching: The period from the end of heating to the beginning of the fusion docking is the switching period. To ensure the quality of the fusion docking, the shorter the switching period, the better.



7. Melting butt joint: It is the key to welding. The fusion butt joint process should always be carried out under the melting pressure.



8. Cooling: Due to the poor thermal conductivity of plastic materials, the cooling rate is correspondingly slow. The shrinkage of the weld material and the formation of the structure proceed at a slow speed over a long period of time. Therefore, the cooling of the weld must be carried out under a certain pressure.

HDPE Welding Machine Specifications

SPH160

Welding Range 63-160 (mm) Temperature variable ± 3
Power supply 220V, 50-60HZ Power of heating plate 1.0KW /220V
Max tolerance of welding ≤0.2mm Power of planing tool 0.71KW / 220V
Power of hydraulic station 0.75KW/220V Total Power 2.46KW /220V
Heating plate Max. Temp. 300℃ Overall weight (kg) 110KGS
Clamp Size: 63, 75, 90, 110, 125, 140, 160mm
Packing size: three plywood cases 98*58*55, 59*55*72, 74*49*57(cm) ; Total 0.75CBM
Non-Stick Coating on Plate; Germany Seal in Hydraulic System; Famous local brand of electric components;



SPH200

Welding Range 63-200 (mm) Temperature variable ± 3
Power supply 220V, 50-60HZ Power of heating plate 1.6KW /220V
Max tolerance of welding ≤0.2mm Power of planing tool 0.71KW / 220V
Power of hydraulic station 0.75KW/220V Total Power 3.06KW /220V
Heating plate Max. Temp. 300℃ Overall weight (kg) 120KGS
Clamp Size: 63, 75, 90, 110, 125, 140, 160, 180, 200mm
Packing size: three plywood cases 98*58*55, 59*55*72, 74*49*57(cm) ; Total 0.75CBM
Non-Stick Coating on Plate; Germany Seal in Hydraulic System; Famous local brand of electric components;



SPH250

Welding Range 90-250 (mm) Temperature variable ± 3
Power supply 220V, 50-60HZ Power of heating plate 2.0KW /220V
Max tolerance of welding ≤0.2mm Power of planing tool 1.1KW / 220V
Power of hydraulic station 0.75KW / 220V Total Power 3.85KW /220V
Heating plate Max. Temp. 300℃ Overall weight (kg) 145KGS
Clamp Size: 90, 110, 125, 140, 160, 180, 200, 225, 250mm
Packing size: three plywood cases 98*58*55, 59*55*72, 74*49*57(cm) ; Total 0.75CBM
Non-Stick Coating on Plate; Germany Seal in Hydraulic System; Famous local brand of electric components;



SPH315

Welding Range 160-315 (mm) Temperature variable ± 3
Power supply 220V, 50-60HZ Power of heating plate 3.0KW /220V
Max tolerance of welding Jointing ≤0.2mm Power of planing tool 1.1KW / 220V
Power of hydraulic station 0.85KW / 220V Total Power 4.95KW /220V
Heating plate Max. Temp. 300℃ Overall weight (kg) 190KGS
Clamp Size: 160, 180, 200, 225, 250, 280, 315mm
Packing size: three plywood cases 112*71*72, 78*63*75, 74*49*57(cm) ; Total 1.15CBM
Non-Stick Coating on Plate; Germany Seal in Hydraulic System; Famous local brand of electric components;



SPH450

Welding Range 280-450 (mm) Temperature variable ± 5
Power supply 380V, 50-60HZ Power of heating plate 5.2KW /380V
Max tolerance of welding Jointing ≤0.3mm Power of planing tool 1.52KW / 380V
Power of hydraulic station 1.5KW / 380V Total Power 8.22KW /380V
Heating plate Max. Temp. 300℃ Overall weight (kg) 400KGS
ClampSize: 280, 315, 355, 400, 450mm
Packing size: three plywood cases 148*91*105, 86*101*123, 74*49*62(cm) ; Total 2.7CBM
Non-Stick Coating on Plate; Germany Seal in Hydraulic System; Famous local brand of electric components;



SPH630

Welding Range 400-630 (mm) Temperature variable ± 5
Power supply 380V, 50-60HZ Power of heating plate 9.2KW /380V
Max tolerance of welding Jointing ≤0.5mm Power of planing tool 1.52KW / 380V
Power of hydraulic station 1.5KW / 380V Total Power 12.22KW /380V
Heating plate Max. Temp. 300℃ Overall weight (kg) 630KGS
ClampSize: 400, 450, 500, 560, 630mm
Packing size: three plywood cases 168*128*124, 86*116*148, 74*49*62(cm) ; Total 4.4CBM
Non-Stick Coating on Plate; Germany Seal in Hydraulic System; Famous local brand of electric components;



SPH800

Welding Range 630-800(mm) Temperature variable ± 7 ℃
Power supply 380V, 50-60HZ Power of heating plate 12.5KW /380V
Max tolerance of welding Jointing ≤0.7mm Power of planing tool 1.8KW / 380V
Power of hydraulic station 1.5KW / 380V Total Power 15.8KW /380V
Heating plate Max. Temp. 300℃ Overall weight (kg) 1200KGS
Clamp Size: 630, 710, 800mm
Packing size: three plywood cases 186*135*135, 136*76*187, 83*60*56(cm) ; Total 5.6CBM
Non-Stick Coating on Plate; Germany Seal in Hydraulic System; Famous local brand of electric components;



SPH1000

Welding Range 800-1000 (mm) Temperature variable ± 7 ℃
Power supply 380V, 50-60HZ Power of heating plate 17.4KW /380V
Max tolerance of welding Jointing ≤0.7mm Power of planing tool 2.5KW / 380V
Power of hydraulic station 2.5KW / 380V Total Power 22.4KW /380V
Heating plate Max. Temp. 270℃ Overall weight (kg) 1950KGS
Clamp Size: 800, 900, 1000mm
Packing size: three plywood cases: 242*204*177, 135*90*213, 85*62*52(cm) ; Total 11.6CBM
Non-Stick Coating on Plate; Germany Seal in Hydraulic System; Famous local brand of electric components;
Advantages of Welding Machine
Suitable for the connection of thermoplastic pipes and fittings that are made of PP, PB, PE, PVDF in trenches or on construction sites.
Consists of the main frame, the planning tool, the heating plate, and the steel stand etc.
Manufactured from lightweight, high-strength materials.
Labor saving and high efficiency.
The main parts of the welding machine are made of pure aluminum, which is lighter, stronger and smoother than sand turning and steel molding.
