Home > Products > HDPE Pipe Roll Coil Pipe

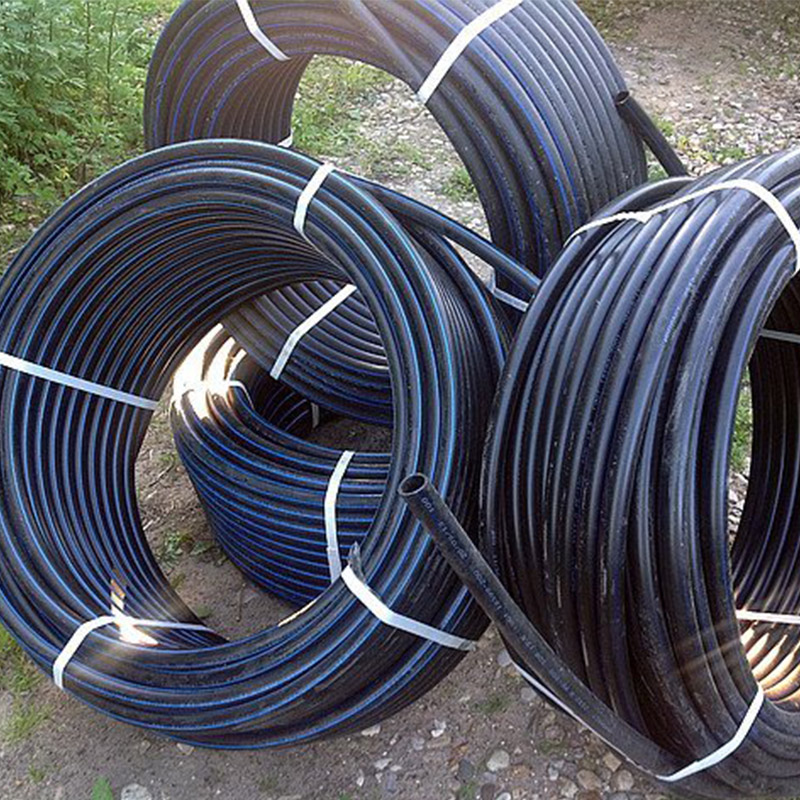

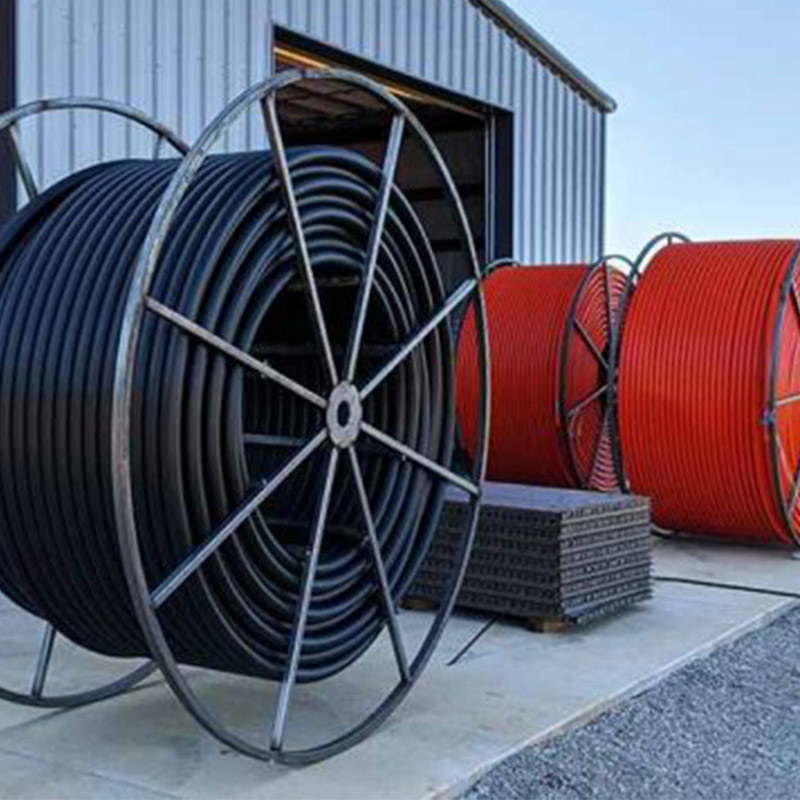

HDPE Pipe Roll Coil Pipe

HDPE Pipe Roll Coil Pipe
HDPE Pipe Roll Coil Pipe
HDPE Pipe Roll Coil Pipe
HDPE Pipe Roll Coil Pipe

HDPE Pipe Roll Coil Pipe

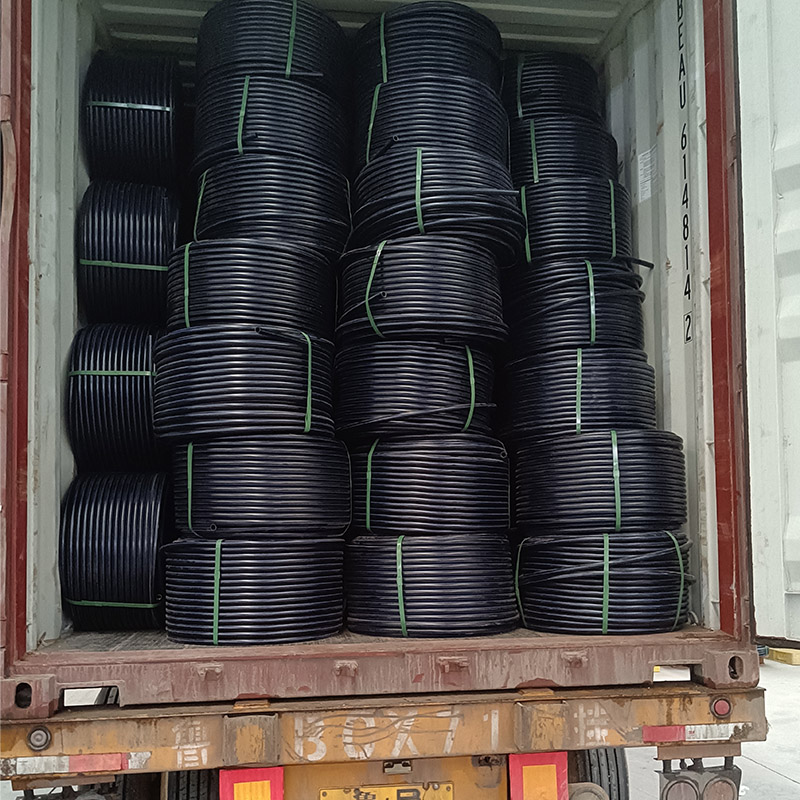

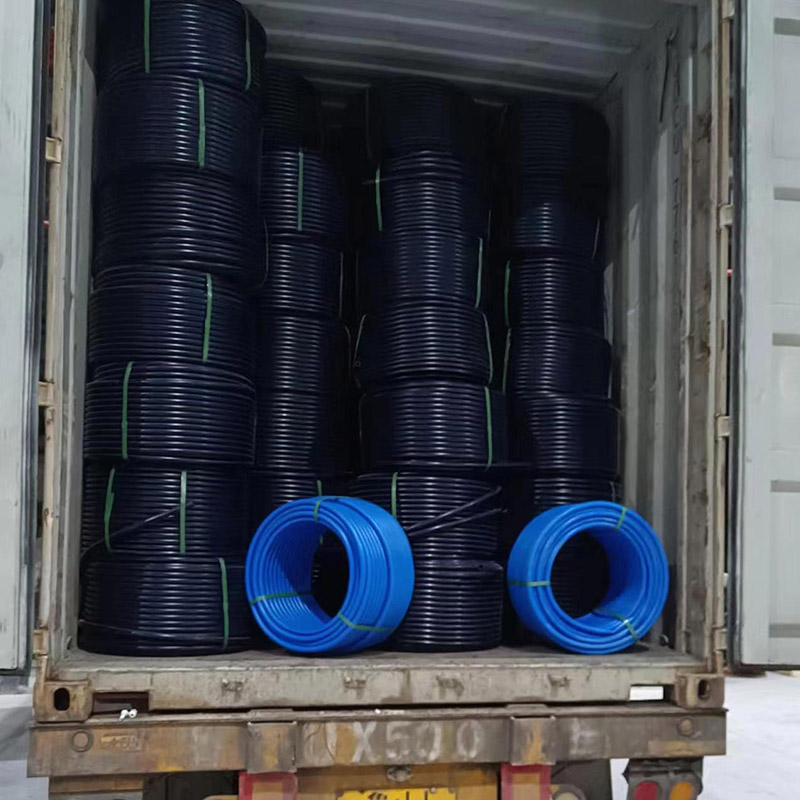

  1. 100m-200m A Roll for Packing
  2. 20mm-160mm(1/2 inch – 6 inch)
  3. Raw Materials: PE100, PE4710, PE3608
  4. PN10, PN12.5, PN16, PN20
  5. SDR17, SDR13.6, SDR11, SDR9
  6. ISO 4427/ EN12201/ ASTM F714/ ASTM D 3035
  7. Color: Black, Blue, Orange, Yellow or Customed



Get Price: [email protected]

Description

Puhui HDPE Pipe Roll Coil Pipe are designed for long-term durability and high performance. These pipes are available in a variety of sizes ranging from 20mm to 160mm, with coil lengths typically between 100m and 200m, making them suitable for a wide range of applications. The color of these pipes can be black, blue, yellow, orange, or customized according to the specific needs of a project or application.



Features

» Features of HDPE Pipe Rolls

» Strong UV Resistance

» Light weight, Easy to Install and Transport

» High Strength-to-density ratio

» Flexibility

» Corrosion and Abrasion Resistance



Applications

  • Drinking Water
  • City ​​Sewage
  • Irrigation system
  • Fire fighting
  • Electricity Conduit
  • Gas Distribution



Advantages

» Durability: Long service life due to high resistance to wear and tear.

» Cost-Efficiency: Lower installation and maintenance costs compared to traditional materials.

» Environmental Friendly: HDPE is a recyclable material, making it a sustainable choice for eco-conscious projects.

» Leak-Proof: The fusion joints create a homogenous system, minimizing the chances of leaks.

» Flexibility in Installation: Can be installed in a variety of ways including trenchless technology, reducing landscape impact.



Comparison with PVC Roll Pipe

Feature HDPE Pipe Rolls PVC Roll Pipe
Material Strength Higher strength-to-density ratio Comparatively lower strength
Flexibility More flexible, suitable for dynamic soils Less flexible, prone to cracking
Chemical Resistance Highly resistant to a wide range of chemicals Vulnerable to certain chemicals
Installation & Handling Easier, due to flexibility More rigid, can be more challenging to handle
Temperature Resistance Higher, can handle extreme temperatures Lower, can become brittle in cold temperatures
Environmental Impact Recyclable, lower carbon footprint Recyclable but typically less eco-friendly
Cost Generally more cost-effective in the long run Initial lower cost but can be more expensive in maintenance and replacement



Puhui HDPE Pipes & Fittings – Your Smart Choice

  • Free Samples Available
  • Most Competitive Offers
  • Direct Factory Deals Save More
  • 24/7 Customer Support
  • Rapid Reliable Delivery
  • Custom Service to Meet Your Project
  • Eco-Friendly Manufacturing
  • Advanced Technology Performence Better



If you have any inquiry about HDPE Pipe and Fittings, Contact Us Now! Get A Free Quote Quickly!

Please Contact us to Get More Details or Price, Send Email: [email protected] or WhatsApp:+86 15093100892 .

Welcome customers to visit the factory, or third party factory inspection is acceptable.

Specifications & Dimensions

HDPE Pipe Roll Coil Pipe Specifications

SDR17 SDR13.6 SDR11 SDR9 SDR7.4
PN10 PN12.5 PN16 PN20 PN25
DN W.T. G.W. W.T. G.W. W.T. G.W. W.T. G.W. W.T. G.W.
mm Inch mm kg/m mm kg/m mm kg/m mm kg/m mm kg/m
20 1/2 1.2 0.07 1.5 0.09 2.0 0.11 2.3 0.13 3.0 0.16
25 3/4 1.5 0.12 2.0 0.15 2.3 0.16 3.0 0.21 3.5 0.24
32 1 2.0 0.19 2.4 0.24 3.0 0.27 3.6 0.32 4.4 0.38
40 1 1/4 2.4 0.29 3.0 0.36 3.7 0.42 4.5 0.50 5.5 0.60
50 1 1/2 3.0 0.45 3.7 0.54 4.6 0.66 5.6 0.78 6.9 0.93
63 2 3.8 0.71 4.7 0.87 5.8 1.04 7.1 1.25 8.6 1.46
75 2 1/2 4.5 1.01 5.6 1.23 6.8 1.46 8.4 1.75 10.3 2.08
90 3 5.4 1.45 6.7 1.76 8.2 2.11 10.1 2.53 12.3 2.99
110 4 6.6 2.15 8.1 2.60 10.0 3.13 12.3 3.76 15.1 4.47
125 5 7.4 2.74 9.2 3.35 11.4 4.06 14.0 4.87 17.1 5.76
140 5 1/2 8.3 3.44 10.3 4.20 12.7 5.06 15.7 6.09 19.2 7.23
160 6 9.5 4.50 11.8 5.48 14.6 6.64 17.9 7.94 21.9 9.42



Please contact us to get Products CatalogTechnical Data Sheet, Get Quotation and the Latest Price List now,

Email:[email protected]

Whatsapp:+86 17335597909

FAQ

Q: Do you provide samples?
A: Yes, we supply test samples. If you are interested in our products and would like to evaluate them before making a bulk purchase, you can request samples. if you need samples, feel free to contact our team.



Q: What is the minimum order quantity for your products?
A: Generally, we have enough stocks for regular diameter & pressure HDPE Pipe and Fittings, pls forward RFQ to our sales team for more details.

Contact us to get quotation and more detail now



Q: What certifications do your products have?
A: Our materials got WRAS & UL NSF 61 Double Authentication and passed NSF, Intertek, BV, SGS , Etc laboratory test



Q: How do you ensure the quality of your products?
A: We built the complete quality management system to make sure that our high quality materials are provided to our valuable clients. Third party factory inspection is acceptable. Pls contact sales team for QCP, ITP details



Q: What is your company’s production capacity?
A: Puhui Industry (Junnuo pipeline) is a professional manufacturer of HDPE,PVC pipes andfittings.specializing in the R&D,production and sales of plastic products, metal products.Our production capacity of all kinds can reach 200,000 tons annually.



Q: What is the delivery time for your products?
A: Usually it is 15-20 days. Delivery times vary based on the specific requirements of the order and our production schedule. Generally, standard products have a shorter delivery period, while customized products or bulk orders may take longer. We provide an estimated delivery time upon order confirmation.
