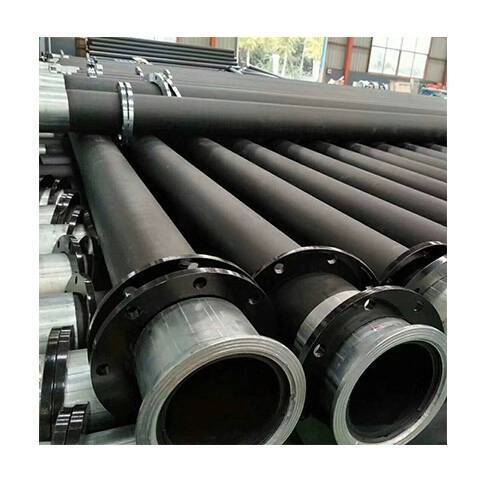

HDPE Mining Tailing Pipe

Puhui HDPE Mining Tailing Pipe
HDPE Mining Tailing Pipe
Puhui HDPE Mining Tailing Pipe
Puhui HDPE Mining Tailing Pipe

HDPE Mining Tailing Pipe

“Leading Quality HDPE Pipe Manufacturer & Supplier & Factory”



  1. 1. Size: 63mm-1800mm
  2. 2. Pressure: SDR6-SDR33
  3. 3. Raw Materials: PE100, PE100-RC, PE4710
  4. 4. Standard: ISO 4427/ EN12201/ AS/NZS 4130/ SANS 4427/ ASTM F714/ ASTM D 3035
  5. 5. Certificate: UL, WRAS, SAA
  6. 6. Delivery: 15-25 days depending on the total quantity

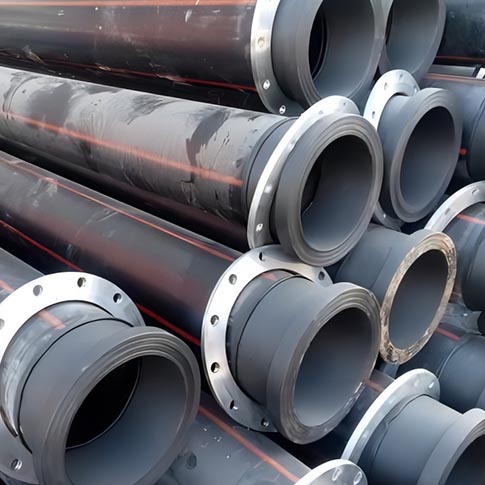

  7. 7. Supply Matching fittings, Stub End, Flange Backing Ring and  other jointed fittings



Email: [email protected]

HDPE mining tailing pipe Application

Puhui can provide Black HDPE Mining Pipe, White HDPE Mining Pipe and HDPE White Co-Extruded Pipe

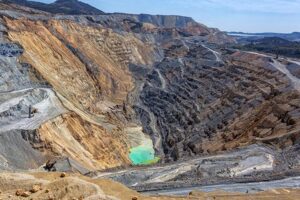

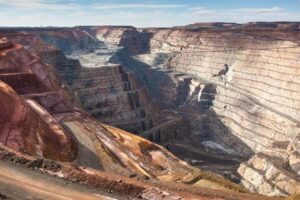

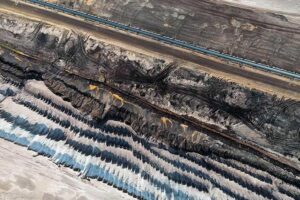

In the challenging and diverse world of mining, where operations face rugged terrains and extreme climates, from arid deserts to moist tropical regions, the advent of HDPE Pipes has revolutionized infrastructure. This pipes are prized for their durability, capable of enduring severe wear, temperature fluctuations, and pressures typical in mining environments. Their resistance to chemical corrosion makes them particularly suitable for handling the acidic or alkaline substances often encountered in mineral extraction processes. such as slurries, acids, and salts commonly found in these applications.HDPE pipe for mining from Puhui Industry fills the need with abrasion resistance, chemical resistance, toughness, leak-free fusion joints, tolerance for variable operating conditions, and exceptional long-term performance.



Puhui Industry HDPE pipe is lightweight, flexible, and durable over its design life. It has low installation and maintenance costs due to heat fusion joining on site, reducing the need for mechanical connections. Puhui Industry HDPE Pipe is used in industrial and mining applications for water and slurry management, such as conveying leachate, mine dewatering, drainage pipe, river water diversion, sewer and sub-drainage systems in mines or industrial plants. Puhui Industry HDPE pipe is the ideal piping solution for your Industrial & Mining applications

HDPE Mining Tailing Pipe     HDPE Mining Tailing Pipe



HDPE Mining Tailing Pipe





HDPE Mining Tailing Pipe Application

> Tailings transportation

> Dust suppression

> Mine dewatering

> Pit dewatering

> Depressurization

> Solution mining

> Heap leaching

> Water processing

> Slurry processing

> Water transportation

> Leachate collecting

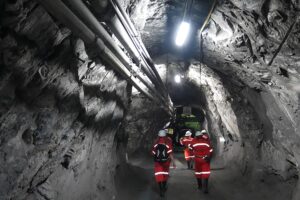

HDPE pipes are versatile. In gold mines, they are essential for transporting water and slurry, playing a pivotal role in the gold extraction process. Their wear and corrosion resistance ensure an uninterrupted flow, boosting productivity. In copper and nickel mines, these pipes handle acidic substances, and their flexibility is a significant advantage in navigating complex tunnel systems. In coal mines, HDPE pipes are integral to gas drainage systems, enhancing safety by maintaining the integrity of the pipeline even under fluctuating conditions.

HDPE pipes represent a significant advancement in mining infrastructure. Their durability, chemical resistance, ease of installation, leak-proof nature, and cost-effectiveness make them a superior choice in various mining operations, including gold, copper, nickel, and coal mines.

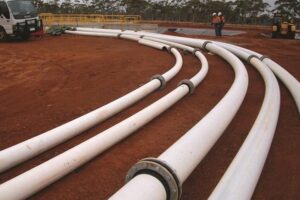

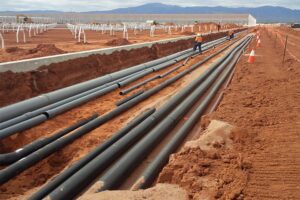

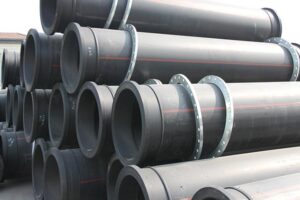

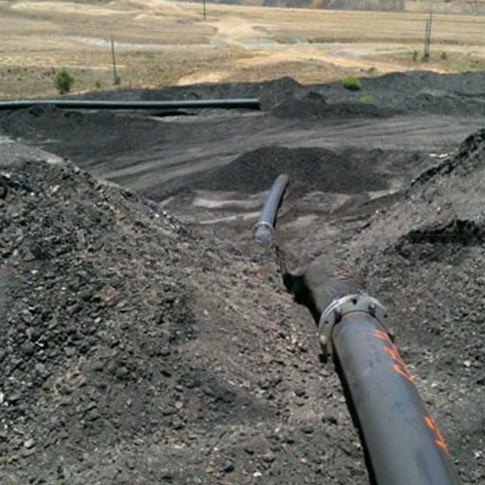

Puhui HDPE Pipe For Mining   Puhui HDPE Pipe For Mining   Puhui HDPE Pipe For Mining



Contact Puhui Pipe Now

Puhui HDPE pipe is durable, cost-effective, resistant to corrosion and can be joined through heat fusion techniques to create leak-free systems. At Puhui Pipe, we specialize in creating the ideal piping solution, offering high quality, reliable HDPE pipe for a wide variety of industries and applications, including:

  • Potable water systems
  • Oil & gas gathering
  • Wastewater systems
  • Power & Communications systems
  • Mining and Industrial systems
  • Natural gas distribution systems



If you have any inquiry about HDPE Pipe and Fittings, Contact Us Now! Get A Free Quote Quickly!

Please Contact us to Get More Details or Price, Send Email: [email protected] or WhatsApp:+86 17335597909 .

Welcome customers to visit the factory, or third party factory inspection is acceptable.

Specifications
DN SDR41 4BAR SDR26 6BAR SDR21 8BAR SDR17 10BAR SDR13.6 12.5BAR SDR11 16BAR SDR9 20BAR SDR7.4 25BAR


(MM)



(INCH)



W.T. (MM)



W.T. (MM)



W.T. (MM)



W.T. (MM)



W.T. (MM)



W.T. (MM)



W.T. (MM)



W.T. (MM)

63 2 2.3 2.5 3.0 3.8 4.7 5.8 7.1 8.6
75 2 1/2 2.3 2.9 3.6 4.5 5.6 6.8 8.4 10.3
90 3 2.3 3.5 4.3 5.4 6.7 8.2 10.1 12.3
110 4 2.7 4.2 5.3 6.6 8.1 10 12.3 15.1
125 5 1/2 3.1 4.8 6 7.4 9.2 11.4 14 17.1
140 6 3.5 5.4 6.7 8.3 10.3 12.7 15.7 19.2
160 6 4.0 6.2 7.7 9.5 11.8 14.6 17.9 21.9
180 6 4.4 6.9 8.6 10.7 13.3 16.4 20.1 24.6
200 8 4.9 7.7 9.6 11.9 14.7 18.2 22.4 27.4
225 8 5.5 8.6 10.8 13.4 16.6 20.5 25.2 30.8
250 10 6.2 9.6 11.9 14.8 18.4 22.7 27.9 34.2
280 10 6.9 10.7 13.4 16.6 20.6 25.4 31.3 38.3
315 12 7.7 12.1 15 18.7 23.2 28.6 35.2 43.1
355 14 8.7 13.6 16.9 21.1 26.1 32.2 39.7 48.5
400 16 9.8 15.3 19.1 23.7 29.4 36.3 44.7 54.7
450 18 11.0 17.2 21.5 26.7 33.1 40.9 50.3 61.5
500 20 12.3 19.1 23.9 29.7 36.8 45.4 55.8
560 22 13.7 21.4 26.7 33.2 41.2 50.8 62.5
630 24 15.4 24.1 30 37.4 46.3 57.2 70.3
710 28 17.4 27.2 33.9 42.1 52.2 64.5 79.3
800 32 19.6 30.6 38.1 47.4 58.8 72.6 89.3
900 36 22.0 34.4 42.9 53.3 66.2 81.7
1000 40 24.5 38.2 47.7 59.3 72.5 90.9
1200 48 29.4 45.9 57.2 70.6 88.2 109.1
1400 54 34.3 53.5 66.7 82.4 102.9
1600 64 39.2 61.2 76.2 94.1 117.6
1800 71 43.8 69.1 85.7 105.9
Advantages
Corrosion resistance
HDPE pipelines are resistant to corrosion by a variety of chemical media, and chemicals present in the soil do not cause any degradation to the pipeline.
No leakage
The polyethylene pipe system is connected by electrofusion and butt fusion methods, and the strength of the joint is higher than the strength of the pipes.
High toughness
The elongation at break of HDPE pipes is generally above 500%. For the uneven settlement of the foundation engineering construction, its adaptability is very strong and the seismic performance is good.
Excellent resistance to stress cracking
HDPE has low notch sensitivity, high shear strength and excellent scratch resistance, and environmental stress crack resistance is also outstanding.
Excellent flexibility
Excellent flexibility and scratch resistance.
Rapid Crack Propagation
Rapid Crack Propagation (RCP) for polyethylene plastic piping systems.
Low temperature impact resistance
Low temperature impact resistance: Polyethylene has a very low temperature belittlement temperature and can be safely used in the temperature range of -60-60 °C. In winter construction, due to the good impact resistance of the material, the tube will not be brittle.
Good wear resistance
Good wear resistance, low wall friction coefficient, low flow resistance and strong conveying capacity.
A variety of new construction methods
HDPE pipelines have a variety of construction techniques, in addition to the traditional excavation methods, a variety of new non-excavation techniques such as pipe jacking, directional drilling, liners Construction in the form of split pipes, etc. which is a good choice for some places that are not allowed to be excavated.
Low system cost
Low system cost and low maintenance cost can greatly reduce project costs.
Long service life
The buried HDPE pipe is normally used for 70 years.Recyclable, environmentally friendly: HDPE materials can be reused, fully in line with the nationally advocated efficient environmental protection concept.
Convenient handling
HDPE pipes are lighter than concrete pipes, galvanized pipes and steel pipes. They are easy to handle and install. The lower manpower and equipment requirements mean that the installation cost of the project is greatly reduced.
