Home > Products > HDPE Electrofusion Fittings EF Joiners

HDPE Electrofusion Fittings EF Joiners

HDPE Electrofusion Fittings EF Joiners
HDPE Electrofusion Fittings EF Joiners
HDPE Electrofusion Fittings EF Joiners
HDPE Electrofusion Fittings EF Joiners

HDPE Electrofusion Fittings EF Joiners

  • ♦ 20mm-1600mm
  • ♦ SDR9, SDR11, SDR17, SDR26
  • ♦ ISO, AWWA, ASTM, UL, NSF, WRAS Certified

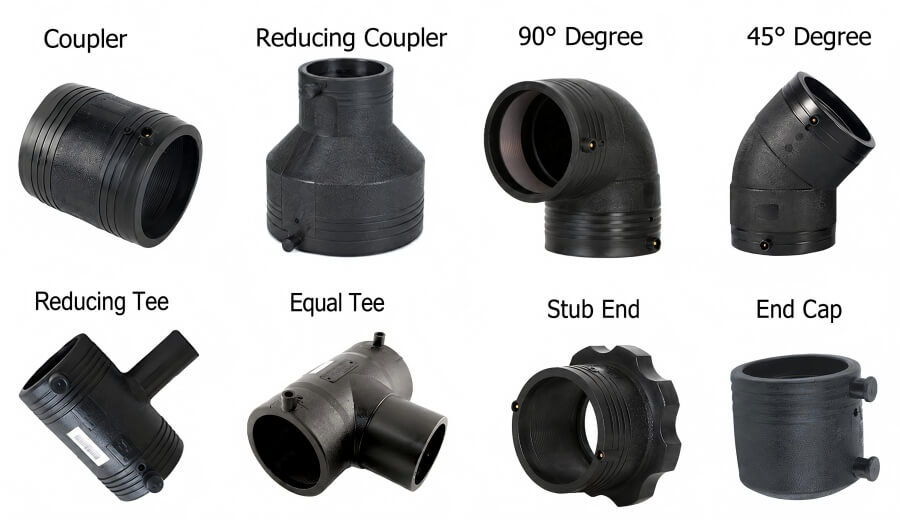

  • ♦ Couplings, Reducers, Elbows, Stub Ends and more.
  • ♦ Made of PE100 & PE4710  (Compatible with PE4710, PE100, and PE 3608 Pipe and Fittings)
  • ♦ In Stock, Quick Deliery. Free Sample Available





Email: [email protected]

Learn Morn About HDPE Electrofusion Fittings

Puhui Industry can offer HDPE Electrofusion Fittings EF Joiners from 20mm to 1600mm with pressure rating SDR9, SDR11, SDR17, SDR26 to get the job done in water and gas distribution, irrigation, mining, and landfill applications.



Our HDPE electrofusion fittings, seamlessly molded to reduce potential leak points, are made from virgin PPI-Listed quanlity PE4710 and PE100 resin, designed and tested to meet or exceed EN12201,EN1555, ISO 4427, ISO 4437, ASTM D3350 standards. All products go through our rigorous, ISO 9001 certified quality management system.



Puhui has large quantity of stock, and regular sizes & items of HDPE electrofusion fittings are available in our stock.

HDPE Electrofusion Fittings



HDPE Electrofusion Fittings Installation Procedures

» CUT the pipe squarely with proper pipe cutter or by using saw proper side-guiding in order to achieve a perpendicular cut.

» MARK the insertion depth by measuring the insertion depth from fitting and areas to be peeled on pipe.

» PEEL the pipe at insertion depth using Rotary Peeler. Repeat this using pipe insertion into fitting at fit or tight-fit condition

» CLEAN the peeled area on pipe and internal part of fitting that to be in contact with pipe using Welding Wipes.

» INSERT the pipe into the fitting until it reaches the hard stop inside the fitting. Make sure that the pipe is not too loose or too tight in the fitting.

» ALIGN the pipe and fitting firmly using the Alignment Clamp that hold and clamp on the pipes on both sides of fitting.

» PLUG in the terminal cables into the terminals on fitting. Scan or key-in the joint parameters (wattage and time respectively).

» FUSE the pipe & fitting joints with the electrofusion machine at the preset time. Pins will protrude out to indicate the fusion process is completed.

If you are in need price or something specific please contact our team today for more information.

Send Email: [email protected] or WhatsApp:+86 15093100892 .



FAQ

# What is HDPE Electrofusion Fitting?

HDPE electrofusion pipe fitting is a type of connection system specifically designed for High-Density Polyethylene (HDPE) pipes. It utilizes an electrofusion process to join HDPE pipes together, providing a strong and reliable connection.


# Do you provide sample?

Yes, we supply free test samples. If you are interested in our products and would like to evaluate them before making a bulk purchase, you can request samples. if you need samples, feel free to contact our team.


# How does HDPE Electrofusion Fitting work?

HDPE electrofusion fitting works by using a specialized electrofusion coupler or fitting that contains embedded heating coils. These coils are connected to an electrofusion control unit. When an electrical current is applied through the control unit, the coils heat up, melting the HDPE material at the joint interface. As the melted material cools down, it solidifies and forms a strong fused joint.


# What are the advantages of HDPE Electrofusion Fittings?

  • Strong and leak-proof connections
  • excellent resistance to corrosion, chemicals, and abrasion
  • Simple installation saves time and money
  • Flexible, more adaptable

# What are the common applications of HDPE Electrofusion Fittings?

  • water supply, distribution, and sewage systems.
  • transporting chemicals, acids, and other corrosive substances
  • Gas distribution
  • mining operations
  • irrigation systems
  • agricultural pipelines



If you have any inquiry about HDPE Pipe and Fittings, Contact Us Now! Get A Free Quote Quickly!

Please Contact us to Get More Details or Price, Send Email: [email protected] or WhatsApp:+86 15093100892 .

Welcome customers to visit the factory, or third party factory inspection is acceptable.

HDPE Electrofusion fittings for HDPE Pipe jointed  HDPE Electrofusion fittings for HDPE Pipe jointed   HDPE Electrofusion fittings for HDPE Pipe jointed
