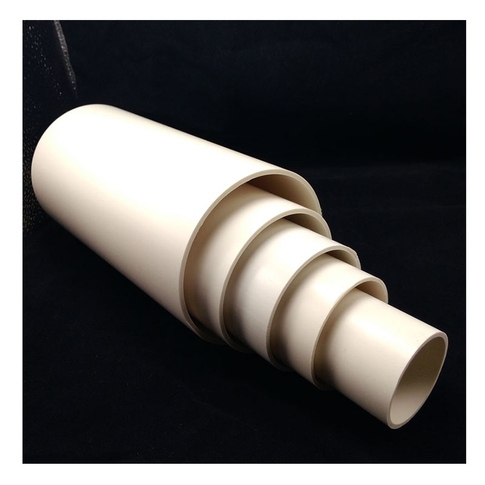

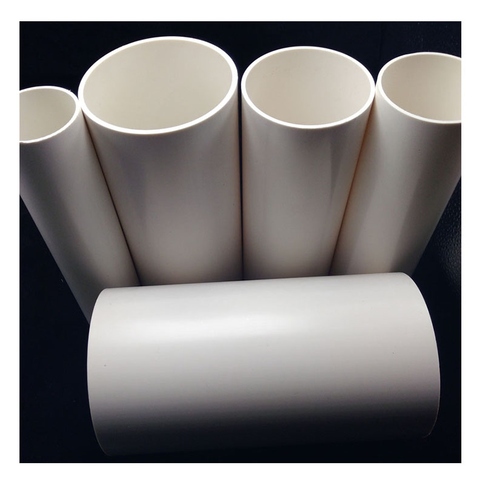

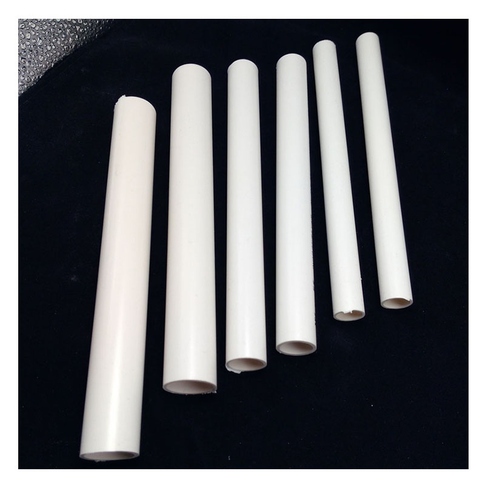

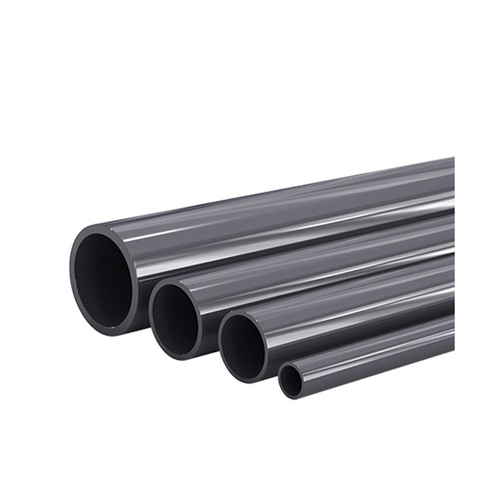

PVC Pipe for Industrial - Puhui Industry

PVC pipe Application PVC pipe Specifications Advantages of PVC pipe

PVC pipe Application

Application

Urban tap water supply and water supply project
Building internal and external water supply project
Industrial and mining enterprise water supply project
Underground fire water supply project
Farmland water conservancy water supply irrigation project
Gardening and gardening green water supply project
Aquaculture water supply and drainage project, etc.

PVC pipe Specifications

Size	Size	Diameter	Socket Depth (mm)	Pressure(PN)
mm	Inch	Tolerance (mm)		6.3		8		10		12.5		16		20		25
DN	DN	Tolerance (mm)		W. T.	kgs/m	W. T.	kgs/m	W. T.	kgs/m	W. T.	kgs/m	W. T.	kgs/m	W. T.	kgs/m	W. T.	kgs/m
20	1/2”	0.2		1.6	0.143	1.6	0.143	1.7	0.152	1.8	0.161	1.8	0.161	2.0	0.176	2.3	0.200
25	3/4”	0.2		1.6	0.184	1.7	0.194	1.7	0.194	1.8	0.205	2.0	0.225	2.3	0.256	2.8	0.305
32	1”	0.2		1.7	0.252	1.7	0.252	1.8	0.266	2.0	0.294	2.4	0.348	3.0	0.421	3.6	0.501
40	1 1/4”	0.2		1.8	0.337	1.8	0.337	2.0	0.373	2.4	0.442	3.0	0.544	3.7	0.658	4.5	0.783
50	1 1/2”	0.2	75	1.8	0.425	2.0	0.471	2.4	0.560	3.0	0.691	3.7	0.840	4.6	1.024	5.6	1.219
63	2”	0.3	100	2.0	0.598	2.5	0.741	3.0	0.888	3.8	1.103	4.7	1.343	5.8	1.626	7.1	1.945
75	2 1/2”	0.3	110	2.3	0.820	2.9	1.025	3.6	1.260	4.5	1.555	5.6	1.905	6.9	2.303	8.4	2.742
90	3”	0.3	120	2.8	1.197	3.5	1.484	4.3	1.806	5.4	2.239	6.7	2.736	8.2	3.288	10.1	3.955
110	4”	0.4	120	2.7	1.420	3.4	1.777	4.2	2.178	5.3	2.720	6.6	3.345	8.1	4.046	10.0	4.902
125	5”	0.4	119	3.1	1.852	3.9	2.315	4.8	2.828	6.6	3.830	7.4	4.265	9.2	5.222	11.4	6.348
140	5 1/2”	0.5	125	3.5	2.342	4.3	2.860	5.4	3.563	6.7	4.378	8.3	5.358	10.3	6.548	12.7	7.924
160	6”	0.5	132	4.0	3.059	4.9	3.725	6.2	4.674	7.7	5.748	9.5	7.008	11.8	8.572	14.6	10.405
180	6”	0.6	145	4.4	3.787	5.5	4.704	6.9	5.854	8.6	7.225	10.7	8.879	13.3	10.867	16.4	13.151
200	8”	0.6	145	4.9	4.686	6.2	5.889	7.7	7.258	9.6	8.959	11.9	10.972	14.7	13.351	18.2	16.218
225	8”	0.7	152	5.5	5.917	6.9	7.376	8.6	9.122	10.8	11.339	13.4	13.898	16.6	16.957
250	10”	0.8	160	6.2	7.409	7.7	9.145	9.6	11.312	11.9	13.888	14.8	17.062	18.4	20.888
280	10”	0.9	170	6.9	9.236	8.6	11.440	10.7	14.124	13.4	17.510	16.6	21.432	20.6	26.192
315	12”	1	180	7.7	11.598	9.7	14.515	12.1	17.965	15.0	22.057	18.7	27.158	23.2	33.182
355	14”	1.1	180	8.7	14.767	10.9	18.384	13.6	22.758	16.9	28.007	21.2	34.686	26.1	42.076
400	16”	1.2	200	9.8	18.743	12.3	23.374	15.3	28.850	19.1	35.659	23.7	43.713	29.4	53.405
450	18”	1.4	200	11.0	23.669	13.8	29.505	17.2	36.488	21.5	45.156	26.7	55.398	33.1	67.638
500	20”	1.5	250	12.3	29.403	15.3	36.349	19.1	45.021	23.9	55.773	29.7	68.464	36.8	83.550
560	22”	1.7	260	13.7	36.684	17.2	45.761	21.4	56.495	26.7	69.793
630	24”	1.9	300	15.4	46.392	19.3	57.772	24.1	71.573	30.0	88.227
710	28”	2		17.4	59.069	21.8	73.536
800	32”	2		19.7	75.308	24.5	93.128
900	36”	2		22.0	94.678	27.6	118.020
1000	40”	2		24.5	117.145	30.6	145.397

Advantages of PVC pipe

Light weight, easy to transport, unload and install.

Low flow resistance, low wall friction coefficient, which is 0.009, low flow resistance and strong conveying capacity.

Low system cost and low maintenance cost can greatly reduce project costs.s

Non-excavation installation

a variety of non-excavation methods can be adopted to facilitate construction and installation.

Environment friendly

the material is PVC resin, sanitary, pollution- free, clean and cheap.

Corrosion resistance

PVC pipelines are resistant to corrosion by a variety of chemical media, and chemicals present in the soil do not cause any degradation to the pipeline.

No leakage

The PVC pipe system is connected by glue connect, rubber ring joint, flange connect methods, which have the good sealing performance when using.

High mechanical resistance

PVC pipes have good compression resistance, impact resistance and tensile strength.

Long service life

The buried PVC pipe is normally used for 70 years.

Recyclable, environmentally friendly

PVC materials can be reused, fully in line with the nationally advocated efficient environmental protection concept.
