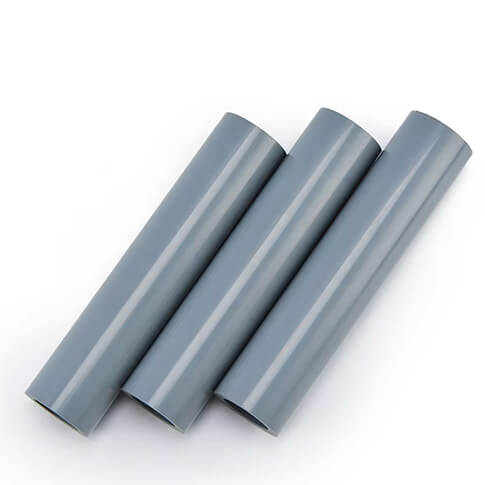

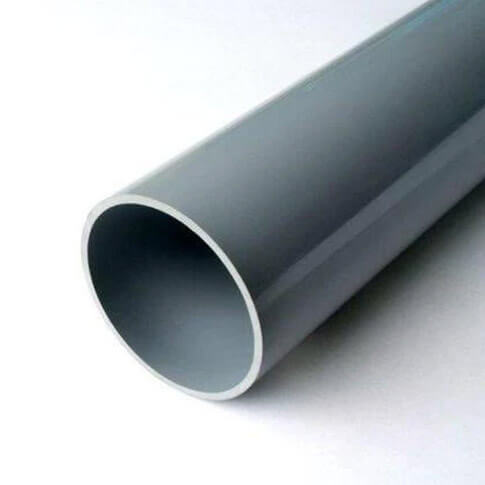

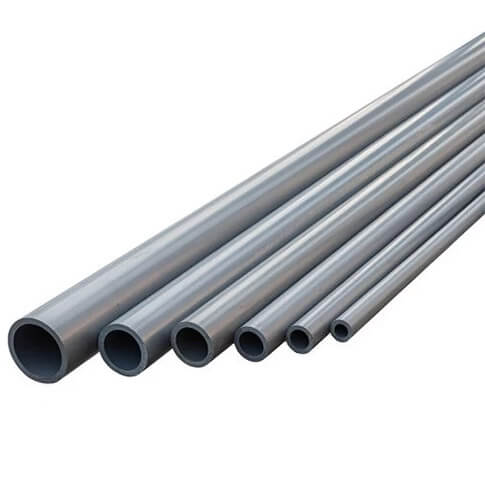

Puhui Industrial-Grade CPVC pipe and fittings Engineered for High-Temperature & Corrosive Environments. Complete sizing from 1/2″ to 8″ with fullmatching cpvc fitting compatibility. Manufactured to ASTM F441 & F439 standards.
✔ Raw Material: Premium ASTM D-1784 Class 23447 CPVC
✔ Heat Resistance: Vicat Softening Temp > 110°C (230°F)

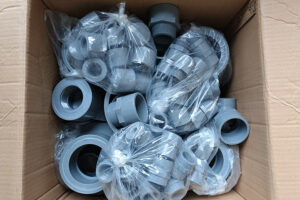

✔ Complete System: Pipes, Flanges, Elbows, Tees & More
[If you need quotation about CPVC pipe and fittings, please contact our team, Send Email: [email protected] or WhatsApp:+86 15093100892 ]
🧪 Chemical Processing
Safely transport aggressive acids, alkalis, and salts. Superior corrosion resistance compared to traditional metal piping, drastically reducing maintenance costs.
♨️ Industrial Hot Water & Cooling
Maintains mechanical strength and rigidity at high temperatures, ideal for industrial cooling towers and pressurized hot water lines.
🏭 Fire Protection & Wastewater
Excellent flame retardancy and chemical resilience make it a reliable choice for industrial fire sprinkler systems and toxic wastewater management.
| Specific Gravity, g/cm³ | 1.54 – 1.56 | ASTM D792 |
| Tensile Strength, psi | 7,500 – 8,000 | ASTM D638 |
| Tensile Strength, MPa | 52 – 55 | ASTM D638 |
| Modulus of Elasticity, psi | 400,000 – 450,000 | ASTM D638 |
| Compressive Strength, psi | 9,000 – 10,000 | ASTM D695 |
| Flexural Strength, psi | 13,500 – 15,000 | ASTM D790 |
| Izod Impact, ft-lb/in (notched) | 0.9 – 1.5 | ASTM D256 |
| Water Absorption, % 24hr @ 73°F | 0.02 – 0.04 | ASTM D570 |
| Max. Service Temp. (under pressure) | 200°F / 93°C | Industry |
| Vicat Softening Temp. | ≥ 230°F / ≥ 110°C | ASTM D1525 |
| Heat Deflection Temp. @ 264 psi | 219°F / 104°C | ASTM D648 |
| Heat Deflection Temp. @ 66 psi | 230°F / 110°C | ASTM D648 |
| Thermal Conductivity, BTU/hr/ft²/°F/in | 0.95 | ASTM C177 |
| Coeff. of Linear Expansion, in/in/°F × 10⁻⁵ | 3.4 – 4.0 | ASTM D696 |
| Flammability (Flame Spread) | < 25 mm avg. | ASTM D635 |
| ASTM D1784 Cell Classification | 23447 / 24448 | ASTM D1784 |
Contact Puhui Pipe Now
If you have any inquiry about CPVC Pipe and Fittings, Contact Us Now! Get A Free Quote Quickly!
Please Contact us to Get More Details or Price, Send Email: [email protected] or WhatsApp:+86 15093100892 .
Welcome customers to visit the factory, or third party factory inspection is acceptable.
| Nominal Pipe Size | Outside Diameter | Wall
Thickness |
Approx.
Inside Diameter |
Nominal Weight | ||||
| PVC | CPVC | |||||||
| inch | mm | mm | mm | mm | kg/m | kg/m | ||
| 1/2” | 15 | 21.34 | ±0.10 | 3.73 | +0.51 | 13.4 | 0.311 | 0.337 |
| 3/4” | 20 | 26.67 | ±0.10 | 3.91 | +0.51 | 18.3 | 0.421 | 0.457 |
| 1” | 25 | 33.40 | ±0.13 | 4.55 | +0.53 | 23.8 | 0.618 | 0.670 |
| 1-1/4” | 32 | 42.16 | ±0.13 | 4.85 | +0.58 | 31.9 | 0.855 | 0.927 |
| 1-1/2” | 40 | 48.26 | ±0.15 | 5.08 | +0.61 | 37.5 | 1.037 | 1.124 |
| 2” | 50 | 60.32 | ±0.15 | 5.54 | +0.66 | 48.6 | 1.435 | 1.556 |
| 2-1/2” | 65 | 73.02 | ±0.18 | 7.01 | +0.84 | 58.2 | 2.190 | 2.373 |
| 3” | 80 | 88.90 | ±0.20 | 7.62 | +0.91 | 72.8 | 2.932 | 3.178 |
| 4” | 100 | 114.30 | ±0.23 | 8.56 | +1.02 | 96.2 | 4.288 | 4.648 |
| 5” | 125 | 141.30 | ±0.25 | 9.53 | +1.14 | 121.1 | 5.950 | 6.450 |
| 6” | 150 | 168.28 | ±0.28 | 10.97 | +1.32 | 145.0 | 8.186 | 8.873 |
| 8” | 200 | 219.08 | ±0.38 | 12.70 | +1.52 | 192.2 | 12.433 | 13.477 |
| 10” | 250 | 273.05 | ±0.38 | 15.06 | +1.80 | 241.1 | 18.436 | 19.983 |
| 12” | 300 | 323.85 | ±0.38 | 17.45 | +2.08 | 286.9 | 25.365 | 27.493 |
| 14” | 350 | 355.60 | ±0.38 | 19.05 | +2.29 | 315.2 | 30.430 | 32.983 |
| 16” | 400 | 406.40 | ±0.48 | 21.41 | +2.57 | 361.0 | 39.125 | 42.408 |
| 18” | 450 | 457.20 | ±0.48 | 23.80 | +2.84 | 406.8 | 48.943 | 53.050 |
| 20” | 500 | 508.00 | ±0.58 | 26.19 | +3.15 | 452.5 | 59.596 | 64.922 |
| 24” | 600 | 609.60 | ±0.79 | 30.94 | +3.71 | 544.0 | 84.974 | 92.105 |
[If you need more info about CPVC pipe and fittings, please contact our team, Send Email: [email protected] or WhatsApp:+86 15093100892 ]
Q: What is the Difference between CPVC and Regular PVC pipe?
CPVC (Chlorinated PVC) contains a higher chlorine content (63–69%) than standard PVC (56.7%). This gives CPVC a significantly higher maximum service temperature of 200°F (93°C) versus PVC’s 140°F (60°C), better chemical resistance, and higher strength at elevated temperatures. CPVC is the material of choice when hot fluids or aggressive chemicals are involved.
Q: What does Schedule 80 mean, and When do I need it Instead of Schedule 40?
Schedule 80 refers to a heavier wall thickness compared to Schedule 40 of the same nominal pipe size. This results in significantly higher pressure ratings. Schedule 80 is recommended for industrial applications, high-pressure lines, and whenever the pipe needs to be threaded (threading Schedule 40 is not recommended). Schedule 80 is also preferred for underground or exposed installations where impact resistance matters.
Q: What Sizes of Pipe and Fittings Can you Supply?

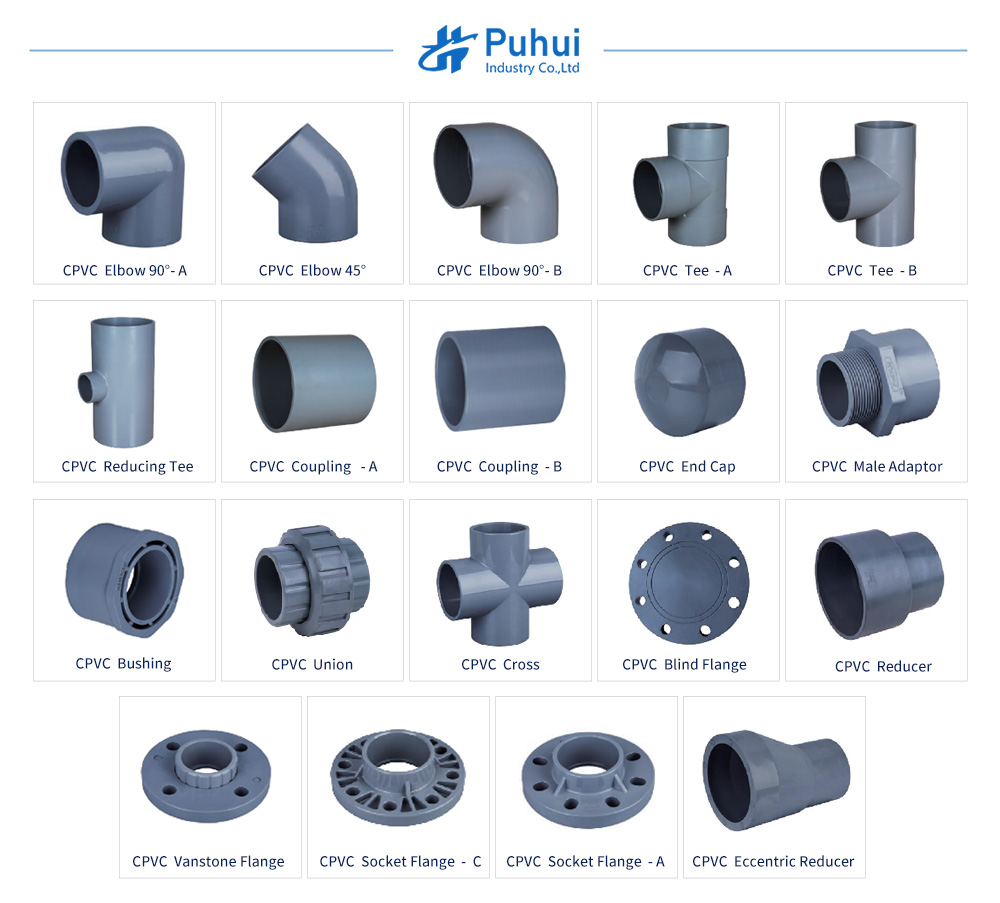

We supply CPVC Schedule 80 pipe from 1/2″ through 24″ in 4-meter standard lengths. Our fitting range (Coupling, Elbow, Tee, Socket Flange, Reducing Tee, Reducer, End Cap, Bushing) covers 1/2″ through 8″. Larger fitting sizes or special configurations — please contact us to discuss.
Q: Can CPVC be Used for Drinking Water / Potable Water Applications?
CPVC is widely used for potable water distribution globally. However, for projects requiring formal compliance with NSF/ANSI 61 (drinking water standard) — particularly in the US/Canada market — please confirm the NSF certification status with us directly before specifying. We are currently pursuing NSF/ANSI 61 certification and expect to complete this in 2025
Q: What Documentation do you Provide with Each Shipment?
Standard documentation includes: Commercial Invoice, Packing List, Bill of Lading, and Material/Mill Test Certificate. Additional documents such as Certificate of Origin, SGS/third-party inspection reports, and customs forms can be arranged upon request. Please specify your documentation requirements when placing your order.
