High-density polyethylene (HDPE) pipe is the ideal choice of piping materials for many applications serving oil & gas gathering, potable water, wastewater, mining & industrial systems, power & communications and natural gas distribution. HDPE pipe resists chemicals, corrosion, physical damage, and more to provide a long-term, cost-effective piping system.
We produce Hdpe Pipes in desired diameters between 20mm – 1800mm and in PN5 – PN32, SDR33-SDR6 pressure classes with high performance and quality. Hdpe Pipe systems that you can safely use in your projects offer many advantages.
HDPE Pressure Pipes can be used for the following applications:
Drinking Water Pipelines
> Fire Main Pipelines
> Gas Piping Systems
> Above-Ground Pipelines
> Wastewater Pipeline
> Electrical Conduit
> Imperial Pipe for Rural Areas
> General Use Pipelines
> Communications Conduit
> Recycled Water Pipelines
> Sewer Pipelines
1.More affordable
2.Flexible and Curlable
3.Resistant to chemicals, and corrosion.
4.Can withstand 2x pressure class
5.Fully UV resistant, durable
6.Can be installed & operated from -40°F to 140°F
7.Seamless connection,no leakage
8.Wear-resistant, high toughness
9.Environmentally friendly and recyclable
“We are committed to providing unparalleled service and support to meet requirements Complete and on time every time.”
PE100 Pipe | SDR33 | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | SDR9 | SDR7.4 | SDR6 | ||||||||||
PN5 | PN6 | PN8 | PN10 | PN12.5 | PN16 | PN20 | PN25 | PN32 | |||||||||||
DN | W.T. | G.W. | W.T. | G.W. | W.T. | G.W. | W.T. | G.W. | W.T. | G.W. | W.T. | G.W. | W.T. | G.W. | W.T. | G.W. | W.T. | G.W. | |
mm | Inch | mm | kg/m | mm | kg/m | mm | kg/m | mm | kg/m | mm | kg/m | mm | kg/m | mm | kg/m | mm | kg/m | mm | kg/m |
20 | 1/2 | 1.0 | 0.06 | 1.2 | 0.07 | 1.5 | 0.09 | 2.0 | 0.11 | 2.3 | 0.13 | 3.0 | 0.16 | 3.4 | 0.18 | ||||
25 | 3/4 | 1.2 | 0.09 | 1.5 | 0.12 | 2.0 | 0.15 | 2.3 | 0.16 | 3.0 | 0.21 | 3.5 | 0.24 | 4.2 | 0.28 | ||||
32 | 1 | 1.5 | 0.15 | 2.0 | 0.19 | 2.4 | 0.24 | 3.0 | 0.27 | 3.6 | 0.32 | 4.4 | 0.38 | 5.4 | 0.45 | ||||
40 | 1 1/4 | 2.0 | 0.26 | 2.4 | 0.29 | 3.0 | 0.36 | 3.7 | 0.42 | 4.5 | 0.50 | 5.5 | 0.60 | 6.7 | 0.70 | ||||
50 | 1 1/2 | 1.8 | 0.29 | 2.4 | 0.36 | 3.0 | 0.45 | 3.7 | 0.54 | 4.6 | 0.66 | 5.6 | 0.78 | 6.9 | 0.93 | 8.3 | 1.08 | ||
63 | 2 | 2.0 | 0.39 | 2.4 | 0.47 | 3.0 | 0.57 | 3.8 | 0.71 | 4.7 | 0.87 | 5.8 | 1.04 | 7.1 | 1.25 | 8.6 | 1.46 | 10.3 | 1.69 |
75 | 2 1/2 | 2.3 | 0.54 | 2.7 | 0.63 | 3.6 | 0.81 | 4.5 | 1.01 | 5.6 | 1.23 | 6.8 | 1.46 | 8.4 | 1.75 | 10.3 | 2.08 | 12.5 | 2.43 |
90 | 3 | 2.8 | 0.78 | 3.3 | 0.93 | 4.3 | 1.16 | 5.4 | 1.45 | 6.7 | 1.76 | 8.2 | 2.11 | 10.1 | 2.53 | 12.3 | 2.99 | 15.0 | 3.51 |
110 | 4 | 3.4 | 1.16 | 4.0 | 1.37 | 5.3 | 1.74 | 6.6 | 2.15 | 8.1 | 2.60 | 10.0 | 3.13 | 12.3 | 3.76 | 15.1 | 4.47 | 18.3 | 5.22 |
125 | 5 | 3.9 | 1.50 | 4.5 | 1.74 | 6.0 | 2.25 | 7.4 | 2.74 | 9.2 | 3.35 | 11.4 | 4.06 | 14.0 | 4.87 | 17.1 | 5.76 | 20.8 | 6.74 |
140 | 5 1/2 | 4.3 | 1.86 | 5.1 | 2.21 | 6.7 | 2.81 | 8.3 | 3.44 | 10.3 | 4.20 | 12.7 | 5.06 | 15.7 | 6.09 | 19.2 | 7.23 | 23.3 | 8.45 |
160 | 6 | 4.9 | 2.40 | S.8 | 2.87 | 7.7 | 3.69 | 9.5 | 4.50 | 11.8 | 5.48 | 14.6 | 6.64 | 17.9 | 7.94 | 21.9 | 9.42 | 26.6 | 11.03 |
180 | 6 | S.5 | 3.04 | 6.5 | 3.61 | 8.6 | 4.64 | 10.7 | 5.69 | 13.3 | 6.96 | 16.4 | 8.40 | 20.1 | 10.04 | 24.6 | 11.91 | 29.9 | 13.94 |
200 | 8 | 6.2 | 3.81 | 7.2 | 4.44 | 9.6 | 5.75 | 11.9 | 7.02 | 14.7 | 8.53 | 18.2 | 10.36 | 22.4 | 12.42 | 27.4 | 14.73 | 33.2 | 17.21 |
225 | 8 | 6.9 | 4.74 | 8.2 | 5.68 | 10.8 | 7.26 | 13.4 | 8.90 | 16.6 | 10.83 | 20.3 | 13.00 | 25.2 | 15.72 | 30.8 | 18.61 | 37.4 | 21.79 |
250 | 10 | 7.7 | 5.88 | 9.1 | 6.99 | 11.9 | 8.89 | 14.8 | 10.91 | 18.4 | 13.34 | 22.7 | 16.12 | 27.9 | 19.32 | 34.2 | 22.98 | 41.5 | 26.87 |
280 | 10 | 8.6 | 7.35 | 10.1 | 8.71 | 13.4 | 11.18 | 16.6 | 13.70 | 20.6 | 16.72 | 25.4 | 20.21 | 31.3 | 24.28 | 38.3 | 28.82 | 46.5 | 33.71 |
315 | 12 | 9.7 | 9.32 | 11.4 | 11.02 | 15.0 | 14.10 | 18.7 | 17.35 | 23.2 | 21.19 | 28.6 | 25.58 | 35.2 | 30.72 | 43.1 | 36.48 | 52.3 | 42.66 |
355 | 14 | 10.9 | 11.78 | 12.9 | 14.05 | 16.9 | 17.86 | 21.1 | 22.09 | 26.1 | 26.87 | 32.2 | 32.47 | 39.7 | 39.01 | 48.5 | 46.25 | 59.0 | 54.19 |
400 | 16 | 12.3 | 15.01 | 14.5 | 17.83 | 19.1 | 22.72 | 23.7 | 27.91 | 29.4 | 34.07 | 36.3 | 41.23 | 44.7 | 49.49 | 54.7 | 58.75 | 66.7 | 68.95 |
450 | 18 | 13.8 | 18.90 | 16.3 | 22.52 | 21.S | 28.81 | 26.7 | 35.36 | 33.1 | 43.16 | 40.9 | 52.21 | 50.3 | 62.66 | 61.5 | 74.32 | ||
500 | 20 | 15.3 | 23.31 | 18.1 | 27.74 | 23.9 | 35.56 | 29.7 | 43.70 | 36.8 | 53.25 | 45.4 | 64.42 | 55.8 | 77.22 | 67.6 | 97.19 | ||
560 | 22 | 17.2 | 29.34 | 20.3 | 34.84 | 26.7 | 44.51 | 33.2 | 54.74 | 41.2 | 66.81 | 50.8 | 80.70 | 62.2 | 96.43 | 75.7 | 121.90 | ||
630 | 24 | 19.3 | 37.01 | 22.8 | 43.99 | 30.0 | 56.24 | 37.4 | 69.33 | 46.3 | 84.45 | 57.2 | 102.25 | 70.3 | 480.96 | 85.1 | 154.19 | ||
710 | 28 | 21.8 | 47.04 | 25.7 | 55.89 | 33.9 | 71.52 | 42.1 | 87.97 | 52.2 | 107.28 | 64.5 | 129.97 | 79.3 | 541.88 | 95.9 | 195.82 | ||
800 | 32 | 24.5 | 59.58 | 29.0 | 71.11 | 38.1 | 90.58 | 47.4 | 111.55 | 58.8 | 136.09 | 72.6 | 175.59 | 89.3 | 610.68 | ||||
900 | 36 | 27.6 | 75.47 | 32.6 | 89.82 | 42.9 | 114.77 | 53.3 | 141.11 | 66.2 | 172.29 | 81.7 | 222.30 | ||||||
1000 | 40 | 30.6 | 92.96 | 36.2 | 110.84 | 47.7 | 141.83 | 59.3 | 174.39 | 73.5 | 212.64 | 90.2 | 272.87 | ||||||
1200 | 48 | 30.6 | 133.73 | 43.5 | 159.84 | 57.2 | 203.39 | 70.6 | 248.56 | 88.2 | 326.06 | ||||||||
1400 | 54 | 42.9 | 182.28 | 50.7 | 217.01 | 66.7 | 276.21 | 82.4 | 337.82 | 102.9 | 443.80 | ||||||||
1600 | 64 | 49.0 | 237.89 | 58.0 | 283.79 | 76.2 | 360.37 | 94.1 | 440.55 | ||||||||||
1800 | 71 | 69.1 | 85.7 | 105.9 |
Contact Puhui Pipe Now

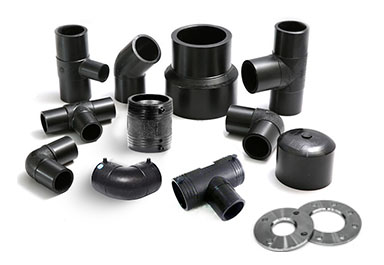

Puhui HDPE pipe is durable, cost-effective, resistant to corrosion and can be joined through heat fusion techniques to create leak-free systems. At Puhui Pipe, we specialize in creating the ideal piping solution, offering high quality, reliable HDPE pipe for a wide variety of industries and applications, including:
If you have any inquiry about HDPE Pipe and Fittings, Contact Us Now! Get A Free Quote Quickly!
Please Contact us to Get More Details or Price, Send Email: [email protected] or WhatsApp:+86 15093100892 .
Welcome customers to visit the factory, or third party factory inspection is acceptable.
Q: Do you provide samples?
A: Yes, we supply test samples. If you are interested in our products and would like to evaluate them before making a bulk purchase, you can request samples. if you need samples, feel free to contact our team.
Q: What is the minimum order quantity for your products?
A: Generally, we have enough stocks for regular diameter & pressure HDPE Pipe and Fittings, pls forward RFQ to our sales team for more details.
Contact us to get quotation and more detail now
Q: What certifications do your products have?

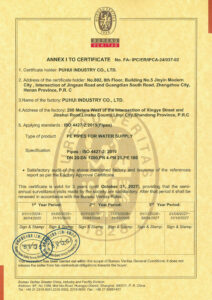

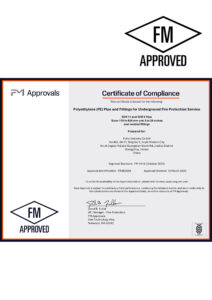

A: Our materials got WRAS & UL NSF 61 Double Authentication and passed NSF, Intertek, BV, SGS , Etc laboratory test
Q: How do you ensure the quality of your products?
A: We built the complete quality management system to make sure that our high quality materials are provided to our valuable clients. Third party factory inspection is acceptable. Pls contact sales team for QCP, ITP details
Q: What is your company’s production capacity?
A: Puhui Industry (Junnuo pipeline) is a professional manufacturer of HDPE,PVC pipes andfittings.specializing in the R&D,production and sales of plastic products, metal products.Our production capacity of all kinds can reach 200,000 tons annually.
Q: What is the delivery time for your products?
A: Usually it is 15-20 days. Delivery times vary based on the specific requirements of the order and our production schedule. Generally, standard products have a shorter delivery period, while customized products or bulk orders may take longer. We provide an estimated delivery time upon order confirmation.
